Once the airgas is released the water flows to the sprinklers. 134529 Dry pipe systems shall be tested once every 3 years for gas leakage using one of the following test methods. Unlike the wet pipe fire sprinkler system filled with water a dry pipe system is filled with compressed air from a source such as an electric compressor or nitrogen bottle. Asked 2 days ago in Trades Technology by NightOwl. A dry pipe sprinkler system is designed so that the piping itself is filled with pressurized air instead of water explains Ken Isman vice president of engineering for the National Fire Sprinkler Association. Before the pressure drops too low the sprinkler system sends a Low Air signal to the fire alarm panel to indicate something needs to be fixed. Most systems have 1 psi of air pressure keeping up to 6 psi of water pressure behind the valve.

Once the minimum required flow is known the minimum required pressure can be determined.

The Central Dry Pipe Valve is a dry pipe sprinkler system water-supply control valve that makes possible the installation of sprinkler systems in buildings subject to freezing temperatures. A dry-pipe sprinkler system is equipped with two different types of gauges. 200 psi for 2 hours and a 40 psi air leak test for 24 hours with less than 15 psi loss 1622. 1345225 The requirements of 1345224 shall not apply in refrigerated spaces maintained below 5F 15C where normal system air pressure shall be permitted to be restored within 60 minutes. Asked 2 days ago in Trades Technology by NightOwl. ___ ___ ___ Systems subject to pressures greater than 50 psi shall be hydro tested at.

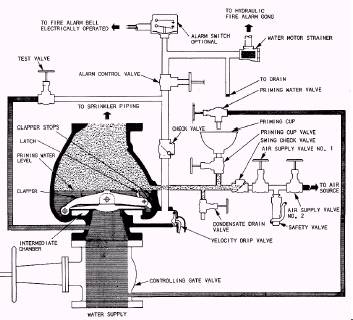

Basic Components Of A Dry Valve

Dry pipe sprinkler system air pressure. The Dry Pipe Sprinkler System is a fire-protection system that utilizes water as an extinguishing agent while the system piping from the Dry Pipe Valve to the automatic fusible sprinklers is filled with pressurized air or nitrogen. The trip pressure in a 51 dry pipe valve at 60 psi of water pressure is 12 psi. Dry system and double interlocks.

___ ___ ___ Systems subject to pressures greater than 50 psi shall be hydro tested at. 134529 Dry pipe systems shall be tested once every 3 years for gas leakage using one of the following test methods. The Central Dry Pipe Valve is a dry pipe sprinkler system water-supply control valve that makes possible the installation of sprinkler systems in buildings subject to freezing temperatures.

Selecting sprinkler heads and determining the required pressure. The water then flows into the piping system and out the opened sprinklers3. A dry system as defined in NFPA 13 is a sprinkler system employing automatic sprinklers that are attached to a piping system containing air or nitrogen under pressure the release of which as from the opening of a sprinkler permits water pressure to open a valve known as a dry pipe valve.

The sprinkler actuates during a. To the left side. Unlike the wet pipe fire sprinkler system filled with water a dry pipe system is filled with compressed air from a source such as an electric compressor or nitrogen bottle.

Mum working pressure of 175 psi. Dry pipe systems should be installed only where heat is not adequate to prevent freezing of water. Once the minimum required flow is known the minimum required pressure can be determined.

1345225 The requirements of 1345224 shall not apply in refrigerated spaces maintained below 5F 15C where normal system air pressure shall be permitted to be restored within 60 minutes. The air-pressure gauge is located _____ the clapper valve and the water-pressure gauge is located _____ the clapper. The Air Maintenance Device is designed to automatically feed air into the system piping at the required volume and pressure from.

A The system shall be permitted to lose up to 3 psi 02 bar during the duration of the test. Pressure and flow are both tied to a value called K-factor which describes how much water flows from a nozzle like a sprinkler head at a given pressure.
